Wall 2E

Wall System 2E

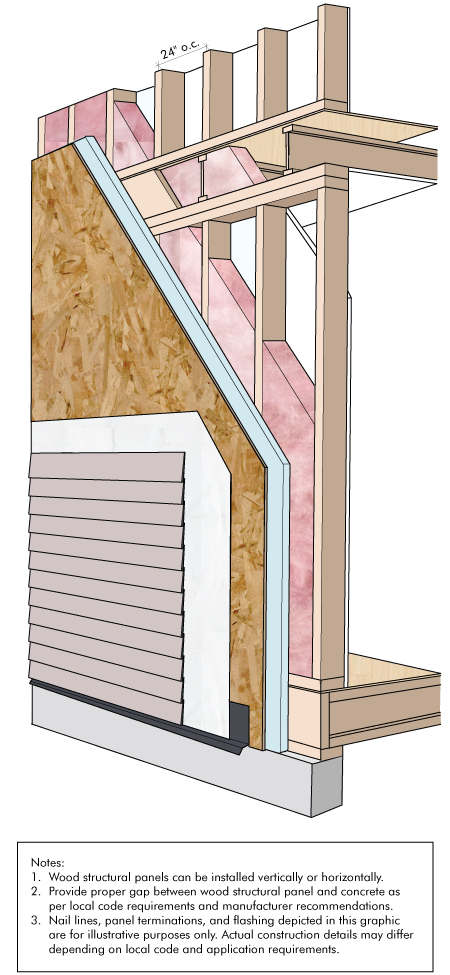

Option #1

Wall Assembly #2 – 2E
Required Effective R (RSI): 18.62 (3.28)
Effective R (RSI) OUTSIDE Nominal R (RSI)
0.17 (0.03) Exterior Air Film 2.5 ci (0.44 ci)
19 (3.34)
0.62 (0.11) Vinyl Cladding
0 Building Paper
0.62 (0.11) 7/16" (11.1mm) Wood Structural Panel Sheathing
2.53 (0.45) 1/2" (12.7mm) XPS
15.90 (2.80) 2x6 SPF w. R24 batt @ 24" o.c.
0 Polyethylene
0.45 (0.08) 1/2" (12.7mm) Gypsum Board
0 1 Coat Latex Primer and Paint
0.68 (0.12) Interior Air Film
20.97 (3.70) INSIDE 19 + 2.5 ci (3.34 + 0.44 ci)

Complexity


Complexity
  This wall is easily constructed using traditional methods. Trades are familiar with the methods used to construct this wall. Stud spacing at 24” o.c. may require additional bracing if tiles or cabinetry are to be installed against the exterior wall. Note that the number of floors supported may determine the required stud spacing. The structural wood panel may act as a nailing base for the vinyl siding as well as brick tie attachment and may also be used as a substrate for stucco and/or foam plastic sheathing. A wood sheathing panel thickness of 7/16” is recommended to provide adequate racking resistance for the assembly. This assembly works well with the prefabrication process.


Cost


Cost
  This wall is moderately affordable. Material costs may range depending on location, supplier and type. Labour unions may charge premiums for installation of some Exterior insulating sheathings depending on type and location in the assembly. Details for this wall are commonly understood by the industry and will likely take little additional time to construct. Overall lumber costs may be reduced by up to 20% by using advanced framing. Advanced framing can also lower the amount of insulation that needs to be added to the assembly.


Moisture Vulnerability


Moisture Vulnerability
  This wall is moderately durable. The vinyl siding acts as a rain screen and is non-absorptive, helping to avoid solar-driven moisture issues. To improve drying to the inside, a variable permeance smart vapour retarder may be used as an alternative to polyethylene. Proper detailing around penetrations such as windows and doors is required to minimize any risk of moisture related issues. On-site construction moisture must also be appropriately managed.


PDF DOWNLOAD ►   ASSEMBLY ATTACHMENTS ►


Wall System 2E - Alternative

Option #2

Wall Assembly #2 – 2E Alternative
Required Effective R (RSI): 18.62 (3.28)
Effective R (RSI) OUTSIDE Nominal R (RSI)
0.17 (0.03) Exterior Air Film 24 (4.22)
0.40 (0.07) Brick Veneer Cladding
1.02 (0.18) 3/4" (20mm) Air Space
0 Building Paper
0.62 (0.11) 7/16" (11.1mm) Wood Structural Panel Sheathing
15.90 (2.80) 2x6 SPF w. R24 batt @ 24" o.c.
0 Polyethylene
0.45 (0.08) 1/2" (12.7mm) Gypsum Board
0 1 Coat Latex Primer and Paint
0.68 (0.12) Interior Air Film
19.24 (3.39) INSIDE 24 (4.22)

Complexity


Complexity
  This wall is easily constructed using traditional methods. Trades are familiar with the methods used to construct this wall. Stud spacing at 24” o.c. may require additional bracing if tiles or cabinetry are to be installed against the exterior wall. Note that the number of floors supported may determine the required stud spacing. The structural wood panel may act as a nailing base for the vinyl siding as well as brick tie attachment and may also be used as a substrate for stucco and/or foam plastic sheathing. A wood sheathing panel thickness of 7/16” is recommended to provide adequate racking resistance for the assembly. This assembly works well with the prefabrication process.


Cost


Cost
  This wall is highly affordable. Trades are familiar with the construction of this type of assembly and do not charge premiums. Overall lumber costs may be reduced by up to 20% by using advanced framing. Advanced framing can also lower the amount of insulation that needs to be added to the assembly.


Moisture Vulnerability


Moisture Vulnerability
  This wall is very durable and has been used successfully for decades by the building industry. The wall has excellent drying potential towards the outside. If moisture penetrates into this assembly the wood sheathing will allow it to dry rapidly to the outside. Proper detailing around penetrations such as windows and doors is required to minimize any risk of moisture related issues. On-site construction moisture must also be appropriately managed.


PDF DOWNLOAD ►   ASSEMBLY ATTACHMENTS ►


Wall System 2E - Advanced Framing

Option #3

Wall Assembly #2 – 2E Advanced Framing
Required Effective R (RSI): 18.62 (3.28)
Effective R (RSI) OUTSIDE Nominal R (RSI)
0.17 (0.03) Exterior Air Film 22 (3.87)
0.62 (0.11) Vinyl Cladding (No Air Space)
0 Building Paper
0.62 (0.11) 7/16" (11.1mm) Wood Structural Panel Sheathing
16.13 (2.84) 2x6 SPF w. R22 batt @ 24" Advanced Framing
0 Polyethylene
0.45 (0.08) 1/2" (12.7mm) Gypsum Board
0 1 Coat Latex Primer and Paint
0.68 (0.12) Interior Air Film
18.67 (3.29) INSIDE 22 (3.87)

Complexity


Complexity
  This wall is easily constructed using traditional methods. Trades are familiar with the methods used to construct this wall. Stud spacing at 24” o.c. may require additional bracing if tiles or cabinetry are to be installed against the exterior wall. Note that the number of floors supported may determine the required stud spacing. The structural wood panel may act as a nailing base for the vinyl siding as well as brick tie attachment and may also be used as a substrate for stucco and/or foam plastic sheathing. A wood sheathing panel thickness of 7/16” is recommended to provide adequate racking resistance for the assembly. This assembly works well with the prefabrication process.


Cost


Cost
  This wall is highly affordable. Trades are familiar with the construction of this type of assembly and do not charge premiums. Overall lumber costs may be reduced by up to 20% by using advanced framing. Advanced framing can also lower the amount of insulation that needs to be added to the assembly.


Moisture Vulnerability


Moisture Vulnerability
  This wall is very durable and has been used successfully for decades by the building industry. The vinyl siding acts as a rain screen and is non-absorptive, helping to avoid solar-driven moisture issues. The wall has excellent drying potential towards the outside. If moisture penetrates into this assembly the wood sheathing will allow it to dry rapidly to the outside. Proper detailing around penetrations such as windows and doors is required to minimize any risk of moisture related issues. On-site construction moisture must also be appropriately managed.


PDF DOWNLOAD ►   ASSEMBLY ATTACHMENTS ►
